Edge Consistency Gauge [AGPro Series]

Focused TradingView workflow Compare a modeled edge’s average outcome with its variability.

5-Year Access, one-time payment. Manual TradingView activation. TradingView and data fees are separate.

Get Access — $149

Already paid through Whop? Get TradingView access help

$149.00

See the variability behind a modeled trading edge.

Use the built-in measured proxy or your own win-rate assumption with a fixed payoff. Compare expectancy, outcome spread and sample depth before interpreting the consistency score.

Selected access 5-Year Access $149 one-time
View on TradingView
  • One focused workflow
  • 5-Year Access · one-time
  • Manual TradingView activation

Already paid through Whop? Get TradingView access help

Manual TradingView activation Submit the exact TradingView username at checkout. Manual review begins after verified payment; access confirmation follows when activation is complete. One-time payment. No subscription. Available payment methods are shown before order placement. Need help before purchase? Ask AGProLabs →
No auto-trading Workflows support manual chart review; they do not place trades or connect to brokers.
No financial advice Outputs are educational and analytical context, not instructions or guaranteed outcomes.
Manual activation TradingView invite-only access is enabled for the submitted username after confirmation.
Transparent checkout Available payment routes and access terms are shown before order placement.
SKU: AGPRO-DCF7E84B6D Category:
Inside Edge Consistency Gauge

Look beyond average expectancy to the unevenness of the outcomes behind it.

Edge Consistency Gauge examines the dispersion of a modeled trading edge. From a measured or manually supplied win rate and a fixed payoff R, it derives expectancy, outcome standard deviation, a mean-to-standard-deviation consistency ratio and a 0-100 score. The chart presents win and loss outcome bars with an expectancy band in ATR-based risk units. An analytical baseline-cap layer distinguishes ratio tiers, provisional sample depth and nonpositive expectancy, so the conversation about an edge can include variability rather than stopping at its average.

Choose with a clear purpose

What this workflow helps you inspect.

For traders examining the variability of a fixed-payoff edge model and the sample assumptions behind its diagnostic ratio and reference tier.

  • Compare modeled average outcome with its standard deviation rather than the mean alone.
  • See win, loss and expectancy references on an ATR-based risk scale.
  • Check resolved sample depth before interpreting a full diagnostic sizing tier.
Read the detailed workflow fit
  • For traders studying why two models with similar expectancy can feel very different over repeated outcomes. It is relevant for comparing assumptions and reviewing the behavior of the built-in proxy trigger across charts. It is not a personal account-risk calculator, an entry-timing tool or evidence that a displayed allocation is appropriate for your financial situation.
Edge Consistency Gauge panel detail from a genuine TradingView interface exampleInspect interface detail
Panel close-up from a historical Edge Consistency Gauge interface example. The crop preserves the original displayed states and values; settings and market conditions may differ. View the full chart for context. This is not live data or evidence of trading performance. View source chart
01

An explicit proxy or manually defined model

A statistical dashboard can be misunderstood when the observations it measures are unclear.

02

Outcome dispersion around expectancy

The same average result can hide a very different distribution of wins and losses.

03

Sizing references that distinguish positive from negative expectancy

A single positive expectancy number does not explain how uneven its supporting outcome model is.

Module by module

See what each layer contributes.

Open a module to explore its purpose, practical interpretation and boundaries. Examples describe a review process; they are not promises of a trading result.

01An explicit proxy or manually defined modelA statistical dashboard can be misunderstood when the observations it measures are unclear.

Measured mode uses price crossing a configurable EMA as a transparent proxy trigger. A simulated sample uses an ATR-based risk unit and the chosen target payoff, resolving wins and losses under its trade model. Manual mode lets the analysis use a supplied win-rate assumption instead. In either case, the result belongs to those particular model inputs, not automatically to your discretionary entries or account history.

A practical reading

Before comparing scores, record whether each chart uses measured proxy observations or the same manual assumptions.

Keep in view: The proxy is not your execution strategy. Small samples and realistic trading frictions can make the model differ materially from live results.

02Outcome dispersion around expectancyThe same average result can hide a very different distribution of wins and losses.

A two-outcome distribution uses the win rate and payoff R to calculate the mean and standard deviation of outcomes. Dividing mean by standard deviation produces a per-trade consistency ratio, which is mapped to the score with adjustable sensitivity. The win bar, loss bar, dashed expectancy line and shaded plus-or-minus-one-standard-deviation band make those assumptions visible on the price scale.

A practical reading

Compare the width of the outcome band with expectancy rather than concluding that every positive average represents the same experience.

Keep in view: The model uses fixed payoff and independence assumptions. Real outcomes can vary, cluster and change with market conditions.

03Sizing references that distinguish positive from negative expectancyA single positive expectancy number does not explain how uneven its supporting outcome model is.

The diagnostic uses analytical baseline-cap tiers, not personalized position sizing. High Ratio, High / Low N, Mid Ratio, Low Ratio, Nonpositive and Collecting distinguish the configured ratio, sign and sample requirements. Measured mode needs the full-tier minimum number of resolved outcomes before its full baseline cap opens. The panel exposes the model, exclusions and sample context alongside the tier.

A practical reading

If a positive model displays LOW RATIO, inspect modeled dispersion and the analytical baseline cap without treating that cap as a position-size recommendation.

Keep in view: Sizing percentages are analytical references. They do not read account equity, existing exposure, leverage or personal loss capacity, and do not guarantee drawdown control.

Configure with a purpose

Understand the controls before changing them.

Explore the main controls and control groups below. Read the current TradingView Inputs and tooltips for the available values; choose a consistent configuration before reviewing its results.

Win-rate source

Selects Measured proxy observations or a Manual assumption.

When to adjust
When changing the evidence basis of the study.

Watch for
Manual assumptions and measured results are not interchangeable evidence.

Payoff R

Defines the win outcome relative to the risk unit.

When to adjust
When specifying the payoff model being compared.

Watch for
A larger modeled reward does not establish a real achievable payoff.

Trigger EMA

Sets the crossing reference for measured proxy entries.

When to adjust
When defining the proxy's observation horizon.

Watch for
Changing the trigger creates a different sample, not a better version of the same result.

ATR length and Max bars in trade

Shape the risk reference and resolution horizon of proxy trades.

When to adjust
When specifying volatility and holding-time assumptions.

Watch for
Timeframe and volatility changes alter how samples resolve.

Proof-engine lookback

Limits the initialization history on a full script recalculation; counters then accumulate forward. It is not a continuously rolling sample.

When to adjust
When choosing the historical period relevant to the study.

Watch for
A shorter sample may be faster but contain less varied evidence.

Consistency ratio scale

Calibrates how mean divided by standard deviation maps to the score.

When to adjust
When specifying score sensitivity for a consistent comparison.

Watch for
A higher displayed score after recalibration does not improve the underlying distribution.

Position sizing thresholds and tier percentages

Define normalized score tiers, the Measured-mode full-tier sample requirement and analytical percentage-of-baseline caps, not account allocations.

When to adjust
When documenting a separate risk-policy comparison.

Watch for
The tiers are not personalized allocations or live account calculations.

Outcome bars visibility

Controls whether the outcome-bar visual is shown.

When to adjust
When switching between a compact panel and visual distribution review.

Watch for
Keep the model's underlying assumptions accessible when the visual is hidden.

Complete settings reference

Every setting, explained.

Explore each input, its source default, available choices and practical effect before changing your configuration.

Open complete settings reference
Settings covered
27
Source version
1.2.0
Source verified

The reference shows defaults in the verified source. A preset or saved chart can retain different input values. Chart captures illustrate the interface and are not a live signal or a performance record.

Edge Consistency Gauge [AGPro Series] actual TradingView interface on BINANCE:SOLUSDT (1D)
TradingView workspace example of Edge Consistency Gauge on SOLUSDT (1D), showing a schematic outcome distribution and analytical baseline-cap tier. The displayed states are illustrative analytical references. Actual historical interface capture associated with the source verified for this reference. Screenshot inputs may differ from source defaults; shown outcomes are not a performance promise.
A repeatable routine

From first look to a documented observation.

  1. Choose measured or manual input deliberately and record the payoff R and relevant sample assumptions.
  2. Inspect the measured proxy and available sample before treating its win rate as informative.
  3. Read expectancy and standard deviation together, then use the outcome bars and band to understand their relative scale.
  4. Review the consistency score and sizing tier as a consequence of the model, not as an independent endorsement.
  5. Keep live costs, changing payoffs, clustered outcomes and portfolio exposure in a separate risk assessment.
Before you buy

Answers specific to this workflow.

Does a High Ratio state guarantee a smooth equity curve?

No. It is a user-scaled mean-to-modeled-sigma diagnostic with explicit sample requirements, not a stability test. Real outcomes can cluster, payoffs can change and execution can differ.

Can I use its percentage as my account allocation?

It is a configured analytical tier, not an assessment of your account, portfolio or personal risk capacity.

Can I use my own win-rate assumption instead of the built-in proxy?

Yes. Manual mode uses a supplied win-rate assumption with the chosen payoff R. Measured mode uses the documented EMA-crossing proxy and its resolution model. Either result belongs to its specific assumptions, not automatically to your account history.

Product overview and access scope

Edge Consistency Gauge models per-trade outcomes from a proxy or manual win-rate assumption and fixed payoff R. It derives gross expectancy, modeled outcome standard deviation, a mean-to-sigma diagnostic and a schematic mean ±1σ band. The band is not a confidence interval or price forecast, and the calculation does not measure outcome-order stability or actual account results.

5-Year Access only. Manual activation for one TradingView username after verified payment.

Product-specific chart proof

How does modeled per-trade outcome dispersion change when win-rate and fixed-payoff assumptions change, even at the same expectancy?

How does modeled per-trade outcome dispersion change when win-rate and fixed-payoff assumptions change, even at the same expectancy? Edge Consistency Gauge turns that question into a repeatable TradingView review process.

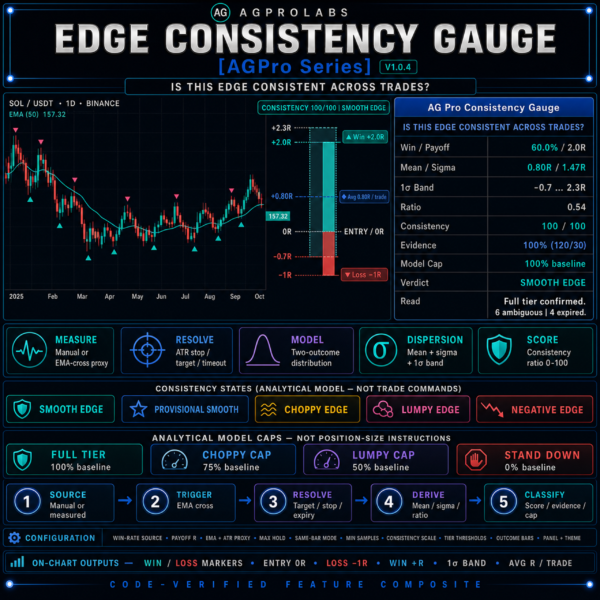

Edge Consistency Gauge — illustrative feature guide with a historical chart example; no promised outcomes.
Official product presentation Edge Consistency Gauge shown through its official product presentation.
What it organizes

Edge Consistency Gauge models a two-outcome distribution from a measured proxy win rate or manual rate assumption and a fixed payoff R. It derives gross expectancy, modeled outcome standard deviation, a mean-to-sigma ratio, a mean ±1σ schematic band and a user-scaled 0–100 diagnostic. It does not measure the distribution of actual variable-payoff account results.

Analytical and educational use only. No auto-trading, broker execution, financial advice or guaranteed outcome.
01

Methodology at a glance

  • 1. Measured Samples Confirmed EMA-cross observations use a fixed initial one-ATR stop and a target at the configured payoff multiple R. A bar touching both boundaries follows the selected Exclude, Stop First or Target…
02

What you see on the chart

  • 0R reference — The latest close anchors a schematic, not an actual entry. • Loss and win bars — Display modeled −1R and +R using ATR and the visual-scale input. • Shaded band —…
03

Where it is most useful

  • Comparing modeled per-trade dispersion and analytical baseline caps without treating them as a position-size recommendation.
04

When to step back

  • On very small samples, where the measured win rate and consistency score are not yet reliable.
Complete product intelligence

Understand the workflow before you activate it.

Purpose, methodology, chart language, operating conditions, controls and limitations are presented below so you can evaluate fit before purchase.

System, Purpose & Difference What the workflow exists to solve, what it produces and why its design differs from generic signal tools.

Core Idea

How does modeled per-trade outcome dispersion change when win-rate and fixed-payoff assumptions change, even at the same expectancy?

What This Workflow Does

Edge Consistency Gauge models a two-outcome distribution from a measured proxy win rate or manual rate assumption and a fixed payoff R. It derives gross expectancy, modeled outcome standard deviation, a mean-to-sigma ratio, a mean ±1σ schematic band and a user-scaled 0–100 diagnostic. It does not measure the distribution of actual variable-payoff account results.

The score feeds an analytical rule cap expressed as a percentage of a user-defined baseline, not account capital or a recommended order size. The full tier also has a minimum-resolved-sample guard in Measured mode. Outcome bars and the mean ±1σ band are ATR-scaled schematics anchored at the latest close; they are not price targets, live trade levels, a confidence interval or a forecast range.

Purpose & Design Philosophy

Two fixed-payoff scenarios can share the same modeled expectancy while having different outcome standard deviations. Comparing those quantities makes the assumptions visible. The calculation uses the winning fraction and fixed payoff, so it does not reveal outcome order, streak length, equity smoothness or whether a size is suitable.

Why It Is Different

Most edge- and win-rate-focused tools stop at a single expectancy number, treating a smooth edge and a lumpy edge the same as long as the average is positive.

This script compares modeled mean and dispersion. Its baseline caps are analytical outputs, not fixed or variable position-size recommendations.

Methodology & Chart Language How context is processed and how zones, labels, colors, panels and visual states should be read.

Methodology

1. Measured Samples Confirmed EMA-cross observations use a fixed initial one-ATR stop and a target at the configured payoff multiple R. A bar touching both boundaries follows the selected Exclude, Stop First or Target First assumption; OHLC data does not establish true intrabar order. Unresolved observations expire at the holding limit. Excluded and expired observations do not enter the resolved win/loss sample, and these classifications are not actual fills.

2. Outcome Distribution The selected win-rate assumption and payoff R define a two-point model with outcomes +R and −1R. The tool derives its expectancy, standard deviation σ and mean ±1σ. This band is a schematic model quantity, not an empirically calibrated coverage interval or a prediction of the next outcome.

3. Consistency Score A per-trade consistency ratio (mean ÷ σ) is mapped to a 0-100 score, with adjustable sensitivity.

How to Read the Chart

  • 0R reference — The latest close anchors a schematic, not an actual entry. • Loss and win bars — Display modeled −1R and +R using ATR and the visual-scale input. • Shaded band — Displays modeled mean ±1σ without a probability-coverage or price-target claim. • Mean line — Shows modeled expectancy. • Win/loss markers — Flag resolved proxy observations. • Decision panel — Shows model quantities, sample audit and the analytical percentage-of-baseline rule cap.
Signals, States & Alerts What each visible state represents and when an alert marks a condition that deserves attention.

Signals & States

  • HIGH RATIO / HIGH / LOW N → the mean-to-modeled-sigma diagnostic is high; the full analytical baseline cap also requires the configured minimum resolved sample count.
  • MID RATIO → the diagnostic reaches the configured middle tier; its cap is a percentage of a user-defined baseline, not an account allocation.
  • LOW RATIO → the diagnostic remains below the middle threshold; the lower analytical baseline cap applies.
  • NONPOSITIVE → modeled expectancy is at or below zero; COLLECTING means the scoring sample requirement has not yet been met.

States describe the shape of the outcome distribution, not a prediction about the next trade.

Best Conditions & When to Step Back Where the workflow is most useful, which conditions weaken interpretation and how context changes the reading.

When to Use

  • Comparing modeled per-trade dispersion and analytical baseline caps without treating them as a position-size recommendation.
  • Comparing the fixed-payoff mean and sigma produced by proxy samples across instruments and timeframes, without inferring outcome-order stability.
  • Building intuition for how outcome dispersion affects the practical experience of trading an edge.
  • Teaching or studying the difference between expectancy and consistency.

When Not to Use

  • On very small samples, where the measured win rate and consistency score are not yet reliable.
  • In thin, illiquid markets where the ATR-based proxy stop and target resolve erratically.
  • During extreme volatility, where realized outcomes diverge sharply from the ATR risk unit.
  • As a market-timing or entry tool — it evaluates outcome dispersion, not the next move.
Controls, Interface & Practical Workflow The main inputs, visual controls and a repeatable sequence for using the workflow without losing chart clarity.

Key Inputs

  • Win-rate source — Measured (trigger + proof engine) or Manual. • Payoff R — the reward-to-risk that defines the win outcome. • Trigger EMA / ATR length / Max bars in trade — shape and resolve the proxy trades. • Proof-engine lookback — selects the initialization history on a full recalculation; counters then accumulate forward. It is not a continuously rolling sample. • Consistency ratio scale — calibrates how the mean/σ ratio maps to the 0-100 score. • Position model thresholds — normalized score tiers, a Measured-mode full-tier sample guard, and percentage-of-baseline analytical caps. • Outcome bars — show or hide the outcome-bar display.
Boundaries, Limitations & Risk What the workflow does not do, where its outputs can weaken and the risk boundaries every buyer should understand.

What This Workflow Is Not

  • It is NOT a prediction engine — it does not forecast price or the next trade.
  • It is NOT financial advice.
  • It is NOT an automated or signal-trading system.
  • It does NOT guarantee any win rate, payoff, or outcome.

Limitations & Transparency

The measured win rate depends entirely on the built-in proxy trigger, which is a stand-in for real entries and will differ from them. The outcome distribution assumes a fixed payoff R and independent trades; real trading results cluster and edges drift over time. Timeframe, volatility, and liquidity all change how the proxy trades resolve. Past consistency is not future consistency.

Risk Disclosure

Trading involves substantial risk of loss and is not suitable for everyone. This script is provided for educational and analytical purposes only and does not constitute financial advice or a recommendation to buy or sell any instrument. All trading decisions, and their consequences, remain entirely your own responsibility.

5-Year Access & Delivery The access term, payment-to-activation sequence and the TradingView username required for manual delivery.

5-Year Access & Delivery

  • New-purchase access: At least five years of access — 1,827 days from purchase. One-time payment; no automatic renewal.
  • One TradingView username: submit the exact username during checkout.
  • Manual activation: invite-only access is enabled after payment confirmation.

This is an analytical and educational TradingView workflow. It does not connect to a broker, place trades, manage an account, provide financial advice, or guarantee results. Trading involves risk, and every decision remains the user's responsibility.

View the official TradingView publication

Before you buy

Clear access. Clear purpose. No signal-shop promises.

Edge Consistency Gauge is delivered as a TradingView Pine Script workflow for structured analysis and chart review. Access is activated manually for the TradingView username submitted at checkout.

  • TradingView accessInvite-only access is enabled after payment confirmation.
  • Analysis workflowDesigned for context, structure, risk review and visual discipline.
  • Not auto-tradingNo broker connection, no account management and no guaranteed outcome.

Product FAQ

Is this a TradingView Pine Script workflow?

Yes. This product is an invite-only AGPro Series workflow for use inside TradingView.

Does it trade automatically?

No. AGProLabs workflows are analytical tools. They do not connect to brokers, place trades or guarantee outcomes.

How is access activated?

Access is activated manually for the TradingView username submitted during checkout after payment confirmation.

Does access include TradingView or paid market data?

No. This purchase provides invite-only access to the selected AGProLabs workflow. It does not include a TradingView subscription or paid exchange data. Check your TradingView plan, available data, chart resources and alert capabilities for your intended workflow before ordering; contact support if unsure.

Compare other premium products (40)

Open a product to review its methodology, interface and access details.

Confirmation & Playbook

Defense & Management

Liquidity & Reclaim

Platform Access

Risk & Execution

SMC & Structure

Trading Suite

Volume & Trap
