Scenario outcome modeling TradingView Pine Script Workflow

Trade Outcome Simulator [AGPro Series]

Focused TradingView workflow Compare modeled net expectancy and terminal dispersion under explicit payoff and cost assumptions.

5-Year Access, one-time payment. Manual TradingView activation. TradingView and data fees are separate.

Get Access — $149

Already paid through Whop? Get TradingView access help

$149.00

Explore the range of outcomes behind repeating a setup.

Make an outcome scenario's assumptions visible. The simulator combines win rate, fixed payoff, modeled cost and a repetition horizon to show conditional net expectancy and terminal dispersion.

Selected access 5-Year Access $149 one-time
View on TradingView
  • One focused workflow
  • 5-Year Access · one-time
  • Manual TradingView activation

Already paid through Whop? Get TradingView access help

Manual TradingView activation Submit the exact TradingView username at checkout. Manual review begins after verified payment; access confirmation follows when activation is complete. One-time payment. No subscription. Available payment methods are shown before order placement. Need help before purchase? Ask AGProLabs →
No auto-trading Workflows support manual chart review; they do not place trades or connect to brokers.
No financial advice Outputs are educational and analytical context, not instructions or guaranteed outcomes.
Manual activation TradingView invite-only access is enabled for the submitted username after confirmation.
Transparent checkout Available payment routes and access terms are shown before order placement.
SKU: AGPRO-8732AA903C Category:
Inside Trade Outcome Simulator

Explore the range of outcomes behind repeating a setup.

Trade Outcome Simulator takes a win rate, fixed payoff, modeled round-trip cost, and repetition horizon, then calculates conditional net expectancy and terminal outcome dispersion. Measured mode also evaluates a Wilson lower-bound expectancy floor; Manual mode remains an assumed scenario. The purpose is to make variability and evidence requirements visible without presenting terminal bands as pathwise drawdown or guaranteed best/worst outcomes.

Choose with a clear purpose

What this workflow helps you inspect.

For traders comparing fixed-payoff scenarios and examining how costs, sample evidence and repetition assumptions affect modeled outcomes.

  • Compare stated scenarios without confusing manual assumptions with measured chart observations.
  • See expected outcome and dispersion together rather than relying on win rate alone.
  • Check the measured sample requirement and lower-bound expectancy before interpreting a positive reading.
Read the detailed workflow fit
  • For users comparing setup assumptions or trying to understand why a short losing sequence does not, by itself, describe an entire model. Use manual inputs for an explicitly documented scenario, or the built-in measured engine for a chart-based proxy. This is an analytical binomial projection, not random Monte Carlo path generation.
01

Measured or manual edge assumptions

An outcome projection is only as meaningful as the assumptions feeding it.

02

Expectancy and variance together

A win rate alone cannot show the balance between wins, losses, and the spread of repeated outcomes.

03

Series outcome strip

One expected total can conceal the range surrounding that estimate.

Module by module

See what each layer contributes.

Open a module to explore its purpose, practical interpretation and boundaries. Examples describe a review process; they are not promises of a trading result.

01Measured or manual edge assumptionsAn outcome projection is only as meaningful as the assumptions feeding it.

Measured mode counts confirmed target/stop resolutions from the built-in trigger. Historical OHLC does not reveal an inside-bar order when both levels are touched: the selected Exclude, Stop First or Target First rule applies unless the opening price is already at or beyond an edge. Expired unresolved slots are excluded; wins and losses retain fixed model payoffs rather than gap-adjusted execution returns. Manual mode accepts a chosen win rate and payoff. Keeping these sources explicit makes it possible to distinguish a proxy demonstration from a scenario based on your own records, rather than presenting every input combination as a discovered live edge.

A practical reading

Use manual mode to compare two stated payoff assumptions while leaving the win-rate assumption unchanged.

Keep in view: A measured proxy is not your personal trading record, and optimistic manual inputs can create misleading projections.

02Expectancy and variance togetherA win rate alone cannot show the balance between wins, losses, and the spread of repeated outcomes.

The model computes gross per-outcome R as W multiplied by payoff R, minus the losing fraction, then subtracts the configured fixed cost for net expectancy. The fixed cost shifts the mean but not the two-outcome variance. Comparing both reveals how similar expected values can coexist with different modeled variability.

A practical reading

Review how a larger payoff changes expected R and variability rather than judging it only by the size of a winning trade.

Keep in view: The simplified model does not make real trades independent or keep the actual payoff distribution fixed.

03Series outcome stripOne expected total can conceal the range surrounding that estimate.

Across T repetitions, the conditional net mean scales with T and dispersion with the square root of T. The schematic rail displays upper and lower sigma references and the mean in net R. Its chart position is decorative, not a projection of future price or a list of guaranteed ending outcomes.

A practical reading

Increase the series horizon and inspect how the mean and spread change together under exactly the same edge assumptions.

Keep in view: A positive lower band does not prove that a live process is robust; outcomes outside the displayed sigma reference levels remain possible; the separate Confidence level input applies to the measured Wilson bound.

04Diagnostic quality and measured evidence floorA positive expectancy may still be small relative to the swings assumed by the model.

Measured mode combines net expectancy with a Wilson lower win-rate endpoint and the configured resolved-sample threshold. POSITIVE FLOOR requires positive lower-bound net expectancy and enough resolved observations. Otherwise positive measured expectancy remains provisional; Manual mode identifies positive, breakeven, or negative assumed scenarios.

A practical reading

A positive observed net expectancy can remain provisional when the lower-bound expectancy or resolved-sample threshold is not qualified.

Keep in view: A positive model floor depends on the sample and independence assumptions. Terminal bands do not estimate pathwise drawdown or protect an account from loss.

Configure with a purpose

Understand the controls before changing them.

Explore the main controls and control groups below. Read the current TradingView Inputs and tooltips for the available values; choose a consistent configuration before reviewing its results.

Edge source

Switches between the built-in measured trigger and manually entered assumptions.

When to adjust
When moving from a chart proxy to a documented independent scenario.

Watch for
These are different evidence sources and should be labeled as such.

Manual win rate and payoff R

Define the winning fraction and winning payoff used by the analytical model.

When to adjust
For sensitivity comparisons grounded in plausible records.

Watch for
Do not treat a desirable input as an observed result.

Measured engine controls

Trigger lookback, stop distance, target payoff, and sample controls shape the proxy observations.

When to adjust
When deliberately redefining the measured scenario.

Watch for
A changed engine configuration produces a different sample process.

Series length T

Sets the number of repetitions used for expected total and dispersion calculations.

When to adjust
When examining a different planning horizon.

Watch for
A longer horizon does not ensure the assumed edge remains stable.

Outcome band

Sets the sigma multiple used for upper and lower terminal net-R reference levels.

When to adjust
To inspect sensitivity to the selected sigma multiple; this is separate from the measured Wilson confidence setting.

Watch for
The band is not a worst-case outcome, pathwise drawdown estimate, or hard loss floor.

Complete settings reference

Every setting, explained.

Explore each input, its source default, available choices and practical effect before changing your configuration.

Open complete settings reference
Settings covered
26
Source version
1.2.1
Source verified

The reference shows defaults in the verified source. A preset or saved chart can retain different input values. Chart captures illustrate the interface and are not a live signal or a performance record.

Trade Outcome Simulator [AGPro Series] historical DOGEUSDT four-hour chart and complete model panel from the official TradingView publication
Historical DOGEUSDT 4-hour example displayed in the official Trade Outcome Simulator TradingView publication, captured from that page on 13 November 2026. The panel shows net expectancy, a confidence-floor calculation and terminal-series mean/lower sigma reference under model assumptions. It is not a live signal, a pathwise drawdown simulation or a promised trading result. Saved example inputs and market values may differ from your configuration.
Trade Outcome Simulator terminal-outcome model and Overview panel on a BTCUSDT daily chart
Trade Outcome Simulator on BTCUSDT (1D), captured 17 October 2026. The panel illustrates the terminal-outcome model for the selected inputs; it is not a path-by-path trading simulation or a promised result. This secondary archived view has overlapping chart overlays and panel content; use the first publication example for a clearer view of the complete model panel.
A repeatable routine

From first look to a documented observation.

  1. Choose Measured or Manual and write down what the win rate and payoff actually represent.
  2. Inspect sample readiness in Measured mode; a Building guard ending is not proof of future validity.
  3. Read per-trade expectancy before comparing series totals, then inspect both lower and upper outcome bands.
  4. Compare alternative assumptions with a consistent horizon and confidence setting, keeping correlation, costs, and changing conditions in your separate review.
Before you buy

Answers specific to this workflow.

Does this simulate randomly ordered trades?

No. The source identifies an analytical binomial projection. It calculates distribution measures from inputs rather than generating a random Monte Carlo collection of paths.

Can I use the displayed lower band as my maximum possible loss?

No. It is a moment-based terminal outcome reference under fixed-payoff assumptions. It is not a pathwise drawdown estimate or absolute worst case; clustering, changing edge, and execution differences can produce a materially different experience.

What changes when I increase the series length?

Under unchanged model assumptions, the conditional net mean scales with the number of repetitions, while dispersion scales with its square root. A longer modeled series does not ensure that the assumed edge will persist.

Product overview and access scope

Model repeated trade outcomes from win-rate and payoff inputs. Review conditional net expectancy, variability and terminal outcome references; results depend on the assumptions and do not forecast live returns.

5-Year Access only. Manual activation for one TradingView username after verified payment.

Product-specific chart proof

If you repeated this exact setup a hundred times, what would the results actually look like?

If you repeated this exact setup a hundred times, what would the results actually look like? Trade Outcome Simulator turns that question into a repeatable TradingView review process.

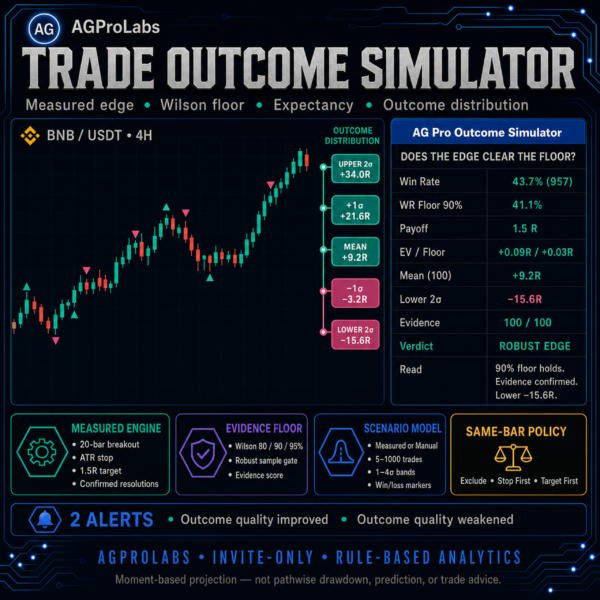

Trade Outcome Simulator [AGPro Series]
Official product presentation Trade Outcome Simulator shown through its official product presentation.
What it organizes

Trade Outcome Simulator uses a setup's win-rate and payoff (R) inputs to model the outcome distribution over repeated trades. It reports net modeled expectancy, variance, standard deviation, and terminal outcome reference bands. Measured mode also evaluates a Wilson lower-bound expectancy floor. These are conditional moment-based estimates, not pathwise drawdown, best/worst outcomes, or forecasts of actual returns.

Analytical and educational use only. No auto-trading, broker execution, financial advice or guaranteed outcome.
01

Methodology at a glance

  • 1. Edge Inputs Win rate (W) and payoff (R) — either measured from a built-in trigger that resolves target-before-stop on the current symbol, or entered manually.
02

What you see on the chart

  • Outcome strip = a schematic net-R rail with upper and lower sigma references and the series mean. Its position beside price is decorative; it does not show price targets.
03

Where it is most useful

  • Before adopting a setup type, to judge whether it is worth trading at all.
04

When to step back

  • As a prediction of any single trade — the projection describes the series, not the next entry.
Complete product intelligence

Understand the workflow before you activate it.

Purpose, methodology, chart language, operating conditions, controls and limitations are presented below so you can evaluate fit before purchase.

System, Purpose & Difference What the workflow exists to solve, what it produces and why its design differs from generic signal tools.

Core Idea

If you repeated this exact setup a hundred times, what would the results actually look like?

What This Workflow Does

Trade Outcome Simulator uses a setup's win-rate and payoff (R) inputs to model the outcome distribution over repeated trades. It reports net modeled expectancy, variance, standard deviation, and terminal outcome reference bands. Measured mode also evaluates a Wilson lower-bound expectancy floor. These are conditional moment-based estimates, not pathwise drawdown, best/worst outcomes, or forecasts of actual returns.

The win rate and payoff can be measured automatically from a built-in trigger on the current symbol, or entered manually. Win rate, fixed payoff, modeled cost, series length, and the selected sigma multiple determine the net series mean and terminal dispersion references. A diagnostic quality score and the measured confidence-floor verdict summarize the stated model.

Purpose & Design Philosophy

A single trade tells you almost nothing about an edge — outcomes are dominated by variance. Traders abandon good setups after a few losses and over-trust bad ones after a few wins, because they judge edges one trade at a time instead of across the repetition that actually defines them.

Why It Is Different

Most edge tools report a single backward-looking number — a win rate, an average R, a profit factor — and stop there.

This script does NOT stop at a point estimate and does NOT pretend a win rate alone tells you the journey.

Instead, it projects the forward outcome distribution of repeating the setup: not just the expected total, but the standard deviation around it, upper and lower terminal sigma references, and the uncertainty of a conditional repeated-outcome model. It does not estimate the path a trading account will experience.

Methodology & Chart Language How context is processed and how zones, labels, colors, panels and visual states should be read.

Methodology

1. Edge Inputs Win rate (W) and payoff (R) — either measured from a built-in trigger that resolves target-before-stop on the current symbol, or entered manually.

2. Expectancy & Variance Gross per-outcome mean R = W·R − (1−W). The configured round-trip cost is subtracted to obtain net expectancy; a fixed cost shifts the mean, not the two-outcome variance.

3. Series Projection Over T repetitions, the model calculates a net expected total and square-root-of-T dispersion. The selected sigma multiple defines terminal upper and lower reference levels; these are not worst-case losses or pathwise drawdown.

4. Evidence Floor Measured mode uses a Wilson lower win-rate endpoint and the selected resolved-sample threshold before reporting POSITIVE FLOOR. Manual mode reports an assumed scenario, not measured evidence.

How to Read the Chart

  • Outcome strip = a schematic net-R rail with upper and lower sigma references and the series mean. Its position beside price is decorative; it does not show price targets.
  • Win / loss markers = where the measured engine resolved trades (Measured mode).
  • Panel = Overview presents the net model and measured floor; Audit separates resolved, ambiguous/excluded, expired, open-slot, and opening-edge observations. Manual inputs remain labeled assumptions.

Green badges are positive outcomes; pink badges are negative. A positive lower band describes the selected model assumptions; it does not establish that a live trading edge is robust.

Signals, States & Alerts What each visible state represents and when an alert marks a condition that deserves attention.

Signals & States

  • POSITIVE FLOOR → measured net lower-bound expectancy is positive and the resolved-sample guard is met under the model
  • PROVISIONAL → net measured expectancy is positive but the selected evidence-floor condition is not qualified
  • NEGATIVE / BREAKEVEN EXPECTANCY → the net measured mean is non-positive
  • POSITIVE / BREAKEVEN / NEGATIVE SCENARIO → Manual mode describes supplied assumptions, not measured evidence

These are confirmed chart/model states, not entry instructions, fills, or future probabilities.

Best Conditions & When to Step Back Where the workflow is most useful, which conditions weaken interpretation and how context changes the reading.

When to Use

  • Before adopting a setup type, to judge whether it is worth trading at all.
  • To compare conditional net expectancy and terminal variability under explicitly stated assumptions.
  • To compare two setups on expectancy-to-variance, not just win rate.

When Not to Use

  • As a prediction of any single trade — the projection describes the series, not the next entry.
  • With an unrealistic manual win rate or payoff — garbage in, garbage out.
  • On too few measured samples. Leaving the Building state only indicates the configured sample requirement; it does not validate future outcomes.
Controls, Interface & Practical Workflow The main inputs, visual controls and a repeatable sequence for using the workflow without losing chart clarity.

Key Inputs

  • Edge source → Measured or Manual.
  • Manual win rate and payoff R.
  • Measured engine → trigger lookback, stop distance, target payoff, samples.
  • Series length (T) → how many repetitions to project.
  • Outcome band → sigma multiple for terminal net-R reference levels, not a drawdown limit.
Boundaries, Limitations & Risk What the workflow does not do, where its outputs can weaken and the risk boundaries every buyer should understand.

What This Workflow Is Not

  • Not a random Monte Carlo simulation — it is an analytical (binomial) projection.
  • Not a prediction of any individual trade or of price direction.
  • Not financial advice.
  • Not an automated trading system, and not a guarantee of any outcome.

Limitations & Transparency

The projection assumes each trade is independent and identically distributed with the given win rate and payoff — real trades cluster, edges drift, and conditions change, so treat the output as a model, not a forecast. Measured win rates depend on the built-in trigger, which is a proxy for your entry, not your exact setup. The terminal bands are moment-based references, not drawdown estimates, absolute best/worst outcomes, or hard loss limits. Read it all as a reasoned estimate to inform judgement.

Risk Disclosure

Trading involves substantial risk. This script is an analytical and educational tool only. It does not provide financial advice or guaranteed outcomes. All trading decisions, and their consequences, remain entirely your own responsibility.

5-Year Access & Delivery The access term, payment-to-activation sequence and the TradingView username required for manual delivery.

5-Year Access & Delivery

  • New-purchase access: At least five years of access — 1,827 days from purchase. One-time payment; no automatic renewal.
  • One TradingView username: submit the exact username during checkout.
  • Manual activation: invite-only access is enabled after payment confirmation.

This is an analytical and educational TradingView workflow. It does not connect to a broker, place trades, manage an account, provide financial advice, or guarantee results. Trading involves risk, and every decision remains the user's responsibility.

View the official TradingView publication

Additional Product Intelligence Further product-specific operating notes and context.

Same expectancy, different outcome ranges

In Manual mode, compare two hypothetical setups over 100 outcomes. Set Round-trip cost (R) to 0.05 for both. Start with a 45% win rate and 1.50R payoff, then change the inputs to 75% and 0.50R.

  • 45% wins, 1.50R payoff: +7.50R modeled mean, 12.44R terminal standard deviation. The one-standard-deviation references span −4.94R to +19.94R.
  • 75% wins, 0.50R payoff: +7.50R modeled mean, 6.50R terminal standard deviation. The one-standard-deviation references span +1.00R to +14.00R.

Both input sets produce the same net expectancy of +0.075R per outcome. The first has a wider spread because its payoff and outcome mix differ. Set Outcome band (σ) to 2 to display the inner ±1σ references on the chart.

These values are calculated from hypothetical inputs. The model assumes independent outcomes with a fixed win rate, payoff and cost. Real trading can produce losses.

Before you buy

Clear access. Clear purpose. No signal-shop promises.

Trade Outcome Simulator is delivered as a TradingView Pine Script workflow for structured analysis and chart review. Access is activated manually for the TradingView username submitted at checkout.

Product FAQ

Is this a TradingView Pine Script workflow?

Yes. This product is an invite-only AGPro Series workflow for use inside TradingView.

Does it trade automatically?

No. AGProLabs workflows are analytical tools. They do not connect to brokers, place trades or guarantee outcomes.

How is access activated?

Access is activated manually for the TradingView username submitted during checkout after payment confirmation.

Does access include TradingView or paid market data?

No. This purchase provides invite-only access to the selected AGProLabs workflow. It does not include a TradingView subscription or paid exchange data. Check your TradingView plan, available data, chart resources and alert capabilities for your intended workflow before ordering; contact support if unsure.

Compare other premium products (40)

Open a product to review its methodology, interface and access details.

Confirmation & Playbook

Defense & Management

Liquidity & Reclaim

Platform Access

Risk & Execution

SMC & Structure

Trading Suite

Volume & Trap
