R-Expectancy Surface [AGPro Series]

Focused TradingView workflow Compare win rate and payoff against gross expectancy and its breakeven frontier.

5-Year Access, one-time payment. Manual TradingView activation. TradingView and data fees are separate.

Get Access — $149

Already paid through Whop? Get TradingView access help

$149.00

See where a win-rate and payoff combination sits on the expectancy map.

Make fixed-payoff expectancy mathematics visible. A colored grid maps win rate against payoff, marks your current scenario and shows how stated changes alter its distance from breakeven.

Selected access 5-Year Access $149 one-time
View on TradingView
  • One focused workflow
  • 5-Year Access · one-time
  • Manual TradingView activation

Already paid through Whop? Get TradingView access help

Manual TradingView activation Submit the exact TradingView username at checkout. Manual review begins after verified payment; access confirmation follows when activation is complete. One-time payment. No subscription. Available payment methods are shown before order placement. Need help before purchase? Ask AGProLabs →
No auto-trading Workflows support manual chart review; they do not place trades or connect to brokers.
No financial advice Outputs are educational and analytical context, not instructions or guaranteed outcomes.
Manual activation TradingView invite-only access is enabled for the submitted username after confirmation.
Transparent checkout Available payment routes and access terms are shown before order placement.
SKU: AGPRO-9A23B647F4 Category:
Inside R-Expectancy Surface

See where a win-rate and payoff combination sits on the expectancy map.

R-Expectancy Surface displays expected R per trade across a two-dimensional grid of win rate and payoff. Each cell applies the same expectancy relationship, while a neutral frontier separates positive and negative combinations. A diamond marks the current setup cell, and an on-chart badge shows current expectancy and Edge Headroom. The result is a visual way to inspect the mathematics behind an assumed edge, including how a change in win rate or reward-to-risk changes the position on the map.

Choose with a clear purpose

What this workflow helps you inspect.

For traders examining the mathematical relationship between win rate and payoff under explicit fixed-payoff assumptions.

  • See neighboring win-rate and payoff scenarios instead of one isolated expectancy number.
  • Compare hypothetical changes while holding the other input fixed.
  • Locate the current scenario against the model's breakeven frontier.
Read the detailed workflow fit
  • For users who want to compare trade-off assumptions rather than celebrate a win rate in isolation. The surface can support an evidence review, a documented manual scenario, or a comparison of the built-in measured proxy. It does not discover a better strategy simply because a more attractive cell exists elsewhere on the grid.
R-Expectancy Surface panel detail from a genuine TradingView interface exampleInspect interface detail
Panel close-up from a historical R-Expectancy Surface interface example. The crop preserves the original displayed states and values; settings and market conditions may differ. View the full chart for context. This is not live data or evidence of trading performance. View source chart
01

Measured or manual setup position

A surface is difficult to interpret unless the current point has an explicit source.

02

Two-dimensional expectancy grid

Win rate and payoff are often discussed separately even though their interaction determines the simplified expectancy.

03

Breakeven frontier and current marker

A positive-looking percentage gives little sense of how close the assumed edge is to breakeven.

Module by module

See what each layer contributes.

Open a module to explore its purpose, practical interpretation and boundaries. Examples describe a review process; they are not promises of a trading result.

01Measured or manual setup positionA surface is difficult to interpret unless the current point has an explicit source.

Measured mode uses price crossing a configurable EMA, a one-ATR stop, and an R-ATR target, with confirmed-bar observations, opening-edge classification and an explicit same-bar Exclude, Stop First or Target First policy. Unresolved observations expire at the holding limit, and only resolved wins and losses enter the scored rate. Manual mode accepts a win rate directly, while payoff R remains an input in both modes. The current diamond therefore represents a specified combination rather than an unexplained assessment of the user's account.

A practical reading

Use a separately documented win rate in Manual mode and see where its payoff assumption places it on the surface.

Keep in view: The built-in proxy differs from personal execution, and its historical rate is not a promise about future trades.

02Two-dimensional expectancy gridWin rate and payoff are often discussed separately even though their interaction determines the simplified expectancy.

Every cell computes W multiplied by payoff R, minus the losing fraction, expressed as R per trade. The horizontal dimension is win rate and the vertical dimension is payoff. Sampling the configured combinations makes the gross fixed-payoff relationship visible: a lower win rate can coexist with positive expectancy at one payoff, while a higher rate can still be insufficient at another.

A practical reading

Inspect two cells with the same win rate but different payoffs to isolate the mathematical effect of that assumption.

Keep in view: The equation is a simplified fixed-payoff model and does not itself incorporate every trading cost or changing outcome distribution.

03Breakeven frontier and current markerA positive-looking percentage gives little sense of how close the assumed edge is to breakeven.

The neutral color marks sampled cells whose gross expectancy is within the configured absolute dead-band around zero. Cells beyond that band have positive or negative gross modeled expectancy. When scoring is ready and the selected pair is in range, the diamond marks the nearest grid cell rather than an exact coordinate. Above frontier, On frontier and Below frontier describe the selected model relative to the dead-band, not a demonstrated live edge.

A practical reading

A current marker close to the neutral band shows why small changes in assumptions can change the interpretation.

Keep in view: Crossing the visual frontier does not confirm a durable live edge or predict a trade's direction.

04Sensitivity and headroom reviewA model can look favorable without showing which assumption is doing the work.

Sensitivity steps define user-supplied hypothetical increments, clipped at the supported win-rate and payoff bounds, for separate mathematical comparisons. Target expectancy and the Headroom scale frame the next-action target and 0–100 presentation. Together with the current expectancy badge, they encourage an explicit question about assumptions: what mathematical change would be required, and is there independent evidence that such a change is achievable?

A practical reading

Compare a stated win-rate increment with a stated payoff increment while keeping the remaining assumptions fixed.

Keep in view: A more favorable modeled cell is a sensitivity scenario, not a recommendation or evidence that a method can reach it.

Configure with a purpose

Understand the controls before changing them.

Explore the main controls and control groups below. Read the current TradingView Inputs and tooltips for the available values; choose a consistent configuration before reviewing its results.

Win-rate source

Selects the measured trigger/proof engine or a manual win rate.

When to adjust
When changing the evidence represented by the current marker.

Watch for
Proxy observations and personal records are not interchangeable.

Payoff R

Sets reward-to-risk and the measured engine's target multiple.

When to adjust
When a documented payoff scenario changes.

Watch for
A larger requested target does not guarantee that the same win rate remains achievable.

Trigger EMA, ATR length, and Max bars in trade

Shape and resolve the proxy observations.

When to adjust
When deliberately redefining the measured study.

Watch for
Keep these fixed when comparing sample changes over time.

Sensitivity steps

Set the win-rate and payoff increments used to compare mathematical levers.

When to adjust
To model plausible rather than arbitrary changes.

Watch for
Sensitivity is conditional mathematics, not validated operational improvement.

Target expectancy and Headroom scale

Define the next-action target and the 0–100 display scale.

When to adjust
When examining a clearly stated target scenario.

Watch for
Changing the scale changes presentation, not the underlying edge.

Surface ranges

Set the win-rate and payoff bounds drawn on the grid.

When to adjust
To keep the relevant combinations readable.

Watch for
Cropping the range can hide nearby unfavorable scenarios.

Panel and visual settings

Control visibility, position, Dark/Light theme, font size, and the on-chart badge.

When to adjust
To fit the study alongside price action.

Watch for
Keep the axes and frontier visible when reading a verdict.

Complete settings reference

Every setting, explained.

Explore each input, its source default, available choices and practical effect before changing your configuration.

Open complete settings reference
Settings covered
32
Source version
1.4.0
Source verified

The reference shows defaults in the verified source. A preset or saved chart can retain different input values. Chart captures illustrate the interface and are not a live signal or a performance record.

R-Expectancy Surface heatmap and Overview panel on a BTCUSDT daily chart
R-Expectancy Surface on BTCUSDT (1D), captured 17 October 2026. The heatmap and panel compare historical parameter combinations under the selected outcome policy. Historical observations are not future probabilities.
A repeatable routine

From first look to a documented observation.

  1. Declare the win-rate source and payoff R, then inspect sample evidence or the independent records supporting manual inputs.
  2. When the model is ready and in range, locate the nearest-cell diamond relative to the neutral band; otherwise inspect the collecting or outside-surface message.
  3. Compare one assumption at a time using stated sensitivity steps and a consistent surface range.
  4. Separate mathematical improvement on the map from operational evidence, transaction costs, and the possibility of a changing edge.
Before you buy

Answers specific to this workflow.

Can the surface tell me how to raise my win rate?

It compares the mathematical effect of stated changes. It does not teach or prove a method for achieving those changes in live trading.

Does a higher payoff always improve my actual edge?

The equation improves if payoff rises while win rate is unchanged. In practice those assumptions may interact, and the surface does not guarantee that both can be maintained.

Can I change the win-rate and payoff ranges shown on the grid?

Yes. Surface ranges set the bounds displayed on the grid, while sensitivity steps set the increments used for lever comparisons. Changing the view does not validate the assumptions entered into it.

Product overview and access scope

R-Expectancy Surface displays a sampled grid of gross expected R per trade within configured win-rate and payoff ranges. Compact and detailed layouts use 5 × 5 and 9 × 7 cells. Each cell applies a fixed-payoff expectancy formula before costs; the ready, in-range setup is marked at its nearest grid cell, not an exact coordinate or a forecast.

5-Year Access only. Manual activation for one TradingView username after verified payment.

Product-specific chart proof

How much does your edge improve if your win rate or your reward-to-risk rises — and where on that map does your setup sit right now?

How much does your edge improve if your win rate or your reward-to-risk rises — and where on that map does your setup sit right now? R-Expectancy Surface turns that question into a repeatable TradingView review process.

R-Expectancy Surface [AGPro Series]

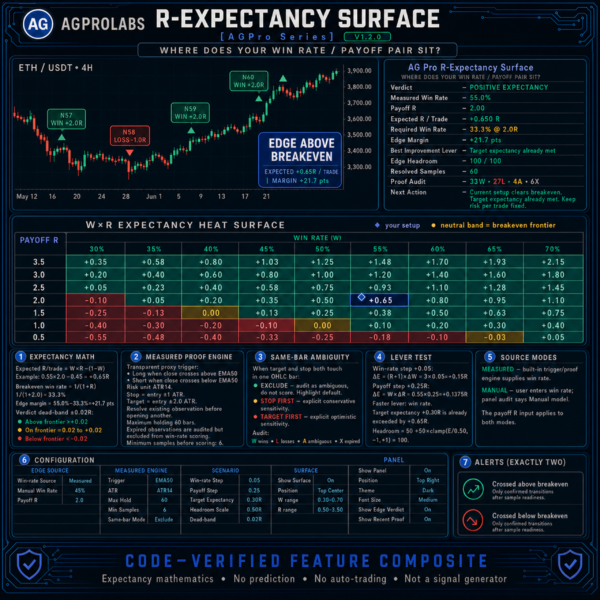

Official product presentation R-Expectancy Surface shown through its official product presentation.
What it organizes

R-Expectancy Surface displays a sampled grid of gross expected R per trade across configured win-rate and payoff-R ranges. The compact grid has 5 × 5 cells; the detailed grid has 9 × 7. Each cell applies the fixed-payoff expectancy formula to its stated assumptions. This is a before-cost mathematical comparison, not a complete model of a trading strategy or its future results.

Analytical and educational use only. No auto-trading, broker execution, financial advice or guaranteed outcome.
01

Methodology at a glance

  • 1. Edge Inputs In Measured mode, confirmed EMA-cross observations use a fixed initial one-ATR stop and an R-ATR target. Opening prices at or beyond a boundary are evaluated first. Otherwise, bars touching both boundaries…
02

What you see on the chart

  • Heat surface — Each sampled win-rate × payoff cell is colored by gross modeled expectancy. • Neutral band — Cells within the configured absolute expectancy dead-band around zero use the neutral color. • ◆…
03

Where it is most useful

  • Reviewing and stress-testing the expectancy of a strategy or setup.
04

When to step back

  • When the proof engine has too few samples — a win rate from a handful of trades is noise, not evidence.
Complete product intelligence

Understand the workflow before you activate it.

Purpose, methodology, chart language, operating conditions, controls and limitations are presented below so you can evaluate fit before purchase.

System, Purpose & Difference What the workflow exists to solve, what it produces and why its design differs from generic signal tools.

Core Idea

How much does your edge improve if your win rate or your reward-to-risk rises — and where on that map does your setup sit right now?

Set the single trade aside. Within the configured win-rate and payoff ranges, compare gross modeled expectancy with the breakeven reference and inspect the effect of separate hypothetical input changes. The model does not measure how easy those changes are to achieve.

What This Workflow Does

R-Expectancy Surface displays a sampled grid of gross expected R per trade across configured win-rate and payoff-R ranges. The compact grid has 5 × 5 cells; the detailed grid has 9 × 7. Each cell applies the fixed-payoff expectancy formula to its stated assumptions. This is a before-cost mathematical comparison, not a complete model of a trading strategy or its future results.

Purpose & Design Philosophy

Most traders chase a higher win rate or a bigger reward-to-risk in isolation, without seeing how the two trade off against each other or how close their current numbers actually are to breakeven. The result is effort spent on the slower lever, or false confidence in an edge that is barely positive.

Why It Is Different

Most expectancy and edge tools collapse everything into one number — a single expectancy figure or a quality score — and stop there.

This script does NOT reduce your edge to one isolated value, and it does NOT pretend to forecast the next trade.

Instead, it samples the configured win-rate and payoff ranges, marks the nearest grid cell only when the model is ready and the selected pair is in range, and colors a neutral band using the gross expectancy dead-band. Separate bounded scenarios compare hypothetical win-rate and payoff increments toward the target; they do not establish feasibility or predict results.

Methodology & Chart Language How context is processed and how zones, labels, colors, panels and visual states should be read.

Methodology

1. Edge Inputs In Measured mode, confirmed EMA-cross observations use a fixed initial one-ATR stop and an R-ATR target. Opening prices at or beyond a boundary are evaluated first. Otherwise, bars touching both boundaries follow the selected Exclude, Stop First or Target First assumption; unresolved observations expire at the holding limit. Only resolved wins and losses form the scored win rate. Manual mode accepts a supplied win-rate assumption. Payoff R is always an input, and fixed-payoff classifications are not actual fills.

2. Surface Grid Expectancy μ is computed for every cell across the win-rate and reward-to-risk ranges using μ(W, R) = W · R − (1 − W), expressed in R per trade.

How to Read the Chart

  • Heat surface — Each sampled win-rate × payoff cell is colored by gross modeled expectancy. • Neutral band — Cells within the configured absolute expectancy dead-band around zero use the neutral color. • ◆ marker — The diamond marks the nearest cell only when the selected pair is in range and scoring is ready; the display otherwise reports collecting outcomes or a setup outside the surface. • On-chart badge — Shows expectancy and the user-scaled Edge Headroom diagnostic, not confidence or a future win probability. • Win/loss markers — Show resolved measured observations, not executed trades.
Signals, States & Alerts What each visible state represents and when an alert marks a condition that deserves attention.

Signals & States

  • Above frontier → gross modeled expectancy exceeds the positive dead-band under the stated fixed-payoff assumptions, before costs.
  • On frontier → gross modeled expectancy is within the configured dead-band around zero; this does not establish whether an actual strategy has an edge.
  • Below frontier → gross modeled expectancy is negative under the stated fixed-payoff assumptions.

Interpretations are descriptive, not directional. These states describe the mathematics of the edge, not a prediction about the next trade.

Best Conditions & When to Step Back Where the workflow is most useful, which conditions weaken interpretation and how context changes the reading.

When to Use

  • Reviewing and stress-testing the expectancy of a strategy or setup.
  • Comparing separate hypothetical win-rate and payoff increments while keeping practical feasibility and costs outside the model.
  • Comparing how the same trigger behaves across instruments and timeframes.
  • Teaching or studying the relationship between win rate, payoff, and breakeven.

When Not to Use

  • When the proof engine has too few samples — a win rate from a handful of trades is noise, not evidence.
  • In thin, illiquid markets where the ATR-based proxy stop and target behave erratically.
  • During extreme volatility regimes where realized risk diverges sharply from the ATR unit.
  • As a market-timing or entry tool — it measures edge structure, not the next move.
Controls, Interface & Practical Workflow The main inputs, visual controls and a repeatable sequence for using the workflow without losing chart clarity.

Key Inputs

  • Win-rate source — Measured (trigger + proof engine) or Manual.
  • Payoff R — The reward-to-risk of the trade, and the target multiple in Measured mode.
  • Trigger EMA / ATR length / Max bars in trade — Shape and resolve the proxy trades.
  • Sensitivity steps — Stated hypothetical win-rate and payoff-R increments used for separate model comparisons.
  • Target expectancy & Headroom scale — Define the Next-Action target and the 0–100 scale.
  • Surface ranges — Win-rate and payoff-R bounds drawn on the grid.
  • Panel & visual — Show/hide, position, theme (Dark/Light), font size, on-chart badge.
Boundaries, Limitations & Risk What the workflow does not do, where its outputs can weaken and the risk boundaries every buyer should understand.

What This Workflow Is Not

  • It is NOT a prediction engine — it does not forecast price or the next trade.
  • It is NOT financial advice.
  • It is NOT an automated or signal-trading system.
  • It does NOT guarantee any win rate, payoff, or outcome.

Limitations & Transparency

The measured win rate depends entirely on the built-in proxy trigger, which is a stand-in for your own entries and will differ from them. Expectancy is computed assuming a fixed payoff R and independent trades; real results cluster and your edge drifts over time. Timeframe, volatility, and liquidity all change how the proxy trades resolve. Past win rate is not future win rate.

Risk Disclosure

Trading involves substantial risk of loss and is not suitable for everyone. This script is provided for educational and analytical purposes only and does not constitute financial advice or a recommendation to buy or sell any instrument. All trading decisions, and their consequences, remain entirely your own responsibility.

5-Year Access & Delivery The access term, payment-to-activation sequence and the TradingView username required for manual delivery.

5-Year Access & Delivery

  • New-purchase access: At least five years of access — 1,827 days from purchase. One-time payment; no automatic renewal.
  • One TradingView username: submit the exact username during checkout.
  • Manual activation: invite-only access is enabled after payment confirmation.

This is an analytical and educational TradingView workflow. It does not connect to a broker, place trades, manage an account, provide financial advice, or guarantee results. Trading involves risk, and every decision remains the user's responsibility.

View the official TradingView publication

Before you buy

Clear access. Clear purpose. No signal-shop promises.

R-Expectancy Surface is delivered as a TradingView Pine Script workflow for structured analysis and chart review. Access is activated manually for the TradingView username submitted at checkout.

  • TradingView accessInvite-only access is enabled after payment confirmation.
  • Analysis workflowDesigned for context, structure, risk review and visual discipline.
  • Not auto-tradingNo broker connection, no account management and no guaranteed outcome.

Product FAQ

Is this a TradingView Pine Script workflow?

Yes. This product is an invite-only AGPro Series workflow for use inside TradingView.

Does it trade automatically?

No. AGProLabs workflows are analytical tools. They do not connect to brokers, place trades or guarantee outcomes.

How is access activated?

Access is activated manually for the TradingView username submitted during checkout after payment confirmation.

Does access include TradingView or paid market data?

No. This purchase provides invite-only access to the selected AGProLabs workflow. It does not include a TradingView subscription or paid exchange data. Check your TradingView plan, available data, chart resources and alert capabilities for your intended workflow before ordering; contact support if unsure.

Compare other premium products (40)

Open a product to review its methodology, interface and access details.

Confirmation & Playbook

Defense & Management

Liquidity & Reclaim

Platform Access

Risk & Execution

SMC & Structure

Trading Suite

Volume & Trap
