Volatility horizon context TradingView Pine Script Workflow

Expected Move Cone [AGPro Series]

Focused TradingView workflow Check whether your target distance fits the volatility model for your chosen bar horizon.

5-Year Access, one-time payment. Manual TradingView activation. TradingView and data fees are separate.

Get Access — $149

Already paid through Whop? Get TradingView access help

$149.00

Compare the target you want with the volatility your chosen horizon can support.

Inner and outer volatility bands expand over your selected horizon. Compare a manual target or ATR distance with that envelope, then read recent-range location separately from the modeled movement scale.

Selected access 5-Year Access $149 one-time
View on TradingView
  • One focused workflow
  • 5-Year Access · one-time
  • Manual TradingView activation

Already paid through Whop? Get TradingView access help

Manual TradingView activation Submit the exact TradingView username at checkout. Manual review begins after verified payment; access confirmation follows when activation is complete. One-time payment. No subscription. Available payment methods are shown before order placement. Need help before purchase? Ask AGProLabs →
No auto-trading Workflows support manual chart review; they do not place trades or connect to brokers.
No financial advice Outputs are educational and analytical context, not instructions or guaranteed outcomes.
Manual activation TradingView invite-only access is enabled for the submitted username after confirmation.
Transparent checkout Available payment routes and access terms are shown before order placement.
SKU: AGPRO-F328B9D188 Category:
Inside Expected Move Cone

Compare the target you want with the volatility your chosen horizon can support.

Expected Move Cone projects a forward volatility envelope from the current bar using recent realized volatility. Inner and outer bands expand with the square root of time across the selected number of bars, while a target-distance check produces a heuristic 0–100 Target Fit score. The chart also identifies whether price sits toward the high, middle or low of its recent range. Together these references help you examine the scale of an expectation before confusing a visually appealing target with one that is close to the recent volatility model.

Choose with a clear purpose

What this workflow helps you inspect.

For traders reviewing whether a target distance fits a stated volatility model and time horizon, without asking the cone to choose direction.

  • Make the bar horizon explicit when reviewing the scale of a target.
  • Compare target distance with log-return volatility or an ATR-percent approximation.
  • Separate the cone's width from stretched-high, middle or stretched-low range location.
Read the detailed workflow fit
  • For traders planning a target horizon and wanting an explicit volatility reference on spot, crypto or other suitable charts. It is especially relevant when you can define both how far away a target lies and how many bars the review concerns. It does not forecast direction, derive options-implied volatility or guarantee that price stays inside the displayed bands.
Expected Move Cone panel detail from a genuine TradingView interface exampleInspect interface detail
Panel close-up from a historical Expected Move Cone interface example. The crop preserves the original displayed states and values; settings and market conditions may differ. View the full chart for context. This is not live data or evidence of trading performance. View source chart
01

Observed volatility projected across time

A fixed-width band does not explain how the modeled range changes over the next several bars.

02

Sigma bands and a target-distance test

A target can look close on a chart while being far from the model's expected-move scale.

03

Recent-range location alongside the cone

Volatility distance alone does not show where the current price sits within recent movement.

Module by module

See what each layer contributes.

Open a module to explore its purpose, practical interpretation and boundaries. Examples describe a review process; they are not promises of a trading result.

01Observed volatility projected across timeA fixed-width band does not explain how the modeled range changes over the next several bars.

Per-bar volatility is estimated from log-return standard deviation or normalized ATR multiplied by sqrt(pi/8), an approximate range-to-sigma conversion. At each forward step, the width scales with the square root of that step. Log-normal price projection creates the expanding upper and lower envelope while keeping the lower boundary above zero. The resulting cone makes the selected time horizon part of the picture instead of leaving it implicit.

A practical reading

Compare the cone at a shorter and longer horizon to see how a time assumption changes the scale of the modeled range.

Keep in view: The input is a trailing estimate. Sudden regime changes, jumps and news events can exceed the recent model by a wide margin.

02Sigma bands and a target-distance testA target can look close on a chart while being far from the model's expected-move scale.

The inner and outer envelopes provide sigma-based references, with horizon badges showing their price levels. An ATR Envelope distance or positive Manual Price target is compared with horizon sigma. Target Fit and INSIDE INNER WINDOW, INSIDE OUTER WINDOW or BEYOND OUTER WINDOW are heuristic distance readings relative to configurable band multipliers, not target-hit probabilities.

A practical reading

A BEYOND OUTER WINDOW reading asks whether the target distance exceeds the selected outer multiplier for that horizon and trailing sample.

Keep in view: An inside-inner or inside-outer label is not a calibrated probability of a target hit. It does not specify path, direction or execution.

03Recent-range location alongside the coneVolatility distance alone does not show where the current price sits within recent movement.

A separate lookback classifies location as stretched-high, mid or stretched-low within the recent high-low range. The location tag and panel let you read this descriptive context beside the forward envelope. This separates two different questions: how wide the modeled movement range is, and whether the current price is near an edge of its observed recent range.

A practical reading

A stretched-high reading can prompt review of a proposed continuation target, but it does not independently justify fading the move.

Keep in view: A range edge is not a reversal signal. Strong trends can remain stretched, and the cone itself does not choose a direction.

Configure with a purpose

Understand the controls before changing them.

Explore the main controls and control groups below. Read the current TradingView Inputs and tooltips for the available values; choose a consistent configuration before reviewing its results.

Volatility method

Selects log-return standard deviation or normalized ATR converted to an approximate sigma with sqrt(pi/8).

When to adjust
When choosing the measurement approach for your analysis.

Watch for
Different estimators do not imply identical probabilities or outcomes.

Volatility length

Sets how much recent history informs the estimate.

When to adjust
When balancing responsiveness against a broader historical baseline.

Watch for
Neither a short nor a long sample can foresee an abrupt shock.

Forward horizon (N)

Sets the number of bars projected by the cone.

When to adjust
When the intended planning duration changes.

Watch for
Very long horizons can create extremely wide, less practical envelopes.

Inner and Outer band sigma multipliers

Set the scale of the displayed inner and outer envelopes.

When to adjust
When reviewing a different model-distance reference.

Watch for
Changing a multiplier changes the band definition, not future price behavior.

Target Mode, ATR Envelope and Manual Target Price

Selects a symmetric ATR Envelope distance or one positive Manual Price for the horizon-sigma comparison.

When to adjust
When evaluating the scale of a particular target assumption.

Watch for
The tool reviews distance; it does not select a profitable target.

Location lookback

Defines the recent range for stretched-high, mid and stretched-low context.

When to adjust
When the relevant range horizon changes.

Watch for
A location label does not forecast reversion or continuation.

Visual and panel settings

Adjust theme, position, font size and element visibility.

When to adjust
When keeping the cone and horizon badges readable.

Watch for
Keep the horizon and volatility assumptions accessible when sharing a chart.

Complete settings reference

Every setting, explained.

Explore each input, its source default, available choices and practical effect before changing your configuration.

Open complete settings reference
Settings covered
20
Source version
1.4.0
Source verified

The reference shows defaults in the verified source. A preset or saved chart can retain different input values. Chart captures illustrate the interface and are not a live signal or a performance record.

Expected Move Cone [AGPro Series] actual TradingView interface on BINANCE:PUMPUSDT (1h)
TradingView workspace example of Expected Move Cone on PUMPUSDT (1h), showing the live volatility cone and terminal-containment calibration. The displayed states are illustrative analytical references. Actual historical interface capture associated with the source verified for this reference. Screenshot inputs may differ from source defaults; shown outcomes are not a performance promise.
A repeatable routine

From first look to a documented observation.

  1. Specify the number of forward bars relevant to your plan before judging any target-distance result.
  2. Choose the volatility method and observation length, recognizing that they describe a particular trailing sample.
  3. Read inner and outer horizon levels, then compare an ATR Envelope or positive Manual Price target with the sigma classification and heuristic Target Fit score. Terminal calibration uses non-overlapping horizon closes, not intervening path containment.
  4. Review the recent-range location as separate context; do not convert stretched-high or stretched-low into an automatic reversal assumption.
  5. Check for event risk, liquidity and changing volatility before using the model in an independent planning process.
Before you buy

Answers specific to this workflow.

Does the cone tell me where price will close?

No. It displays a conditional volatility model around the current reference; direction, path and realized outcome remain unknown.

Why can the cone become very wide?

Longer horizons and larger volatility estimates expand the modeled range. On very high timeframes, the result can be mathematically consistent yet less useful for a practical plan.

What does the separate range-location reading add?

It describes where current price sits within the selected recent high-low range: stretched-high, middle or stretched-low. That is a different question from the cone's forward width. A range edge is not a reversal signal or a forecast of direction.

Product overview and access scope

Expected Move Cone projects configurable terminal volatility envelopes using trailing log-return volatility or an ATR-derived sigma approximation. Compare an ATR Envelope or Manual Price target with horizon sigma and descriptive terminal-close calibration; neither target-hit probability nor option-implied volatility is computed.

5-Year Access only. Manual activation for one TradingView username after verified payment.

Product-specific chart proof

How does your selected target distance compare with a trailing volatility model over the next N bars?

How does your selected target distance compare with a trailing volatility model over the next N bars? Expected Move Cone turns that question into a repeatable TradingView review process.

Expected Move Cone [AGPro Series]

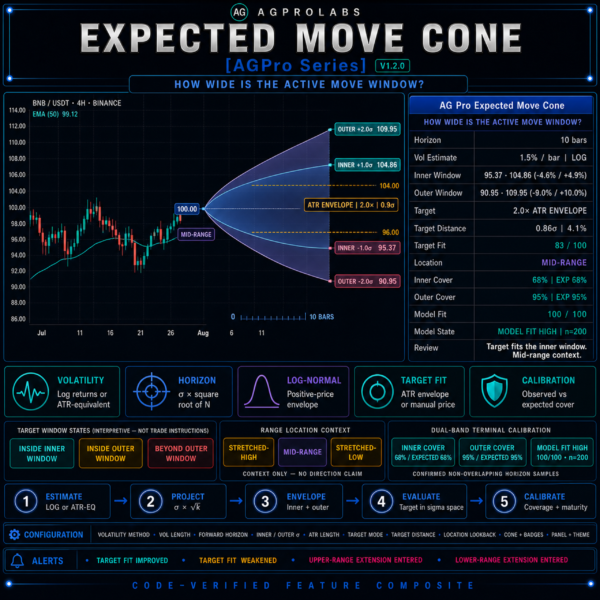

Official product presentation Expected Move Cone shown through its official product presentation.
What it organizes

Expected Move Cone projects a forward volatility cone from the current bar. Using trailing log-return volatility or an ATR-derived sigma approximation, it draws configurable inner and outer terminal envelopes over the next N bars. These model ranges are not a promise that the full price path stays inside them or that a target will be reached. It brings the option-trader concept of an "expected move" to spot and crypto charts, where it is rarely available.

Analytical and educational use only. No auto-trading, broker execution, financial advice or guaranteed outcome.
01

Methodology at a glance

  • 1. Volatility Estimation Per-bar volatility is estimated from log-return standard deviation or from normalized ATR multiplied by sqrt(pi/8), an approximate range-to-sigma conversion. Neither method is option-implied volatility.
02

What you see on the chart

  • Cone: configurable inner and outer log-normal model envelopes, defaulting to 1σ and 2σ.
03

Where it is most useful

  • Planning a target and wanting to know if it fits the symbol's volatility.
04

When to step back

  • In illiquid symbols where volatility estimates are unstable.
Complete product intelligence

Understand the workflow before you activate it.

Purpose, methodology, chart language, operating conditions, controls and limitations are presented below so you can evaluate fit before purchase.

System, Purpose & Difference What the workflow exists to solve, what it produces and why its design differs from generic signal tools.

Core Idea

How does your selected target distance compare with a trailing volatility model over the next N bars?

What This Workflow Does

Expected Move Cone projects a forward volatility cone from the current bar. Using trailing log-return volatility or an ATR-derived sigma approximation, it draws configurable inner and outer terminal envelopes over the next N bars. These model ranges are not a promise that the full price path stays inside them or that a target will be reached. It brings the option-trader concept of an "expected move" to spot and crypto charts, where it is rarely available.

On top of the cone, the script runs a decision engine. It reads where price currently sits inside its recent range (stretched-high, mid, or stretched-low), compares the selected target distance with horizon sigma using a 0–100 heuristic Target Fit score, and prints a clear verdict and next action in a compact panel.

Purpose & Design Philosophy

Most charts are full of tools that find setups but say nothing about how far price can realistically go. Traders set targets by drawing a line where they "want" price to reach, with no reference to the symbol's actual volatility. The result can be targets several model standard deviations away. Distance in sigma units is useful context, but this model does not calculate the probability of touching a target within the horizon.

Why It Is Different

Most volatility tools look backward or sit static on the current bar — regression channels, percentile bands, mean-reversion corridors. They describe where price has been.

This script does NOT draw a backward channel and does NOT claim to know direction.

Instead, it projects forward. It scales per-bar volatility by the square root of the horizon to build a true expanding cone, then measures your target against it. The combination of a forward standard-deviation cone, a log-normal envelope that never produces negative prices, and an on-chart heuristic Target Fit read is what sets it apart from the typical band or channel indicator.

Methodology & Chart Language How context is processed and how zones, labels, colors, panels and visual states should be read.

Methodology

1. Volatility Estimation Per-bar volatility is estimated from log-return standard deviation or from normalized ATR multiplied by sqrt(pi/8), an approximate range-to-sigma conversion. Neither method is option-implied volatility.

2. Cone Projection For each step k from 1 to N, the band half-width scales as σ × √k. Levels are projected log-normally (close × e^±σ√k), so the upper and lower boundaries expand smoothly and the lower band always stays above zero.

3. Location Read Price's position inside its recent high–low range is classified as stretched-high, mid, or stretched-low as neutral range-location context, without forecasting a reversal or continuation.

4. Target Fit ATR Envelope or Manual Price target distance is converted to absolute log-return space and compared with horizon sigma, producing a heuristic 0–100 Target Fit score and an inside-inner, inside-outer or beyond-outer classification.

How to Read the Chart

  • Cone: configurable inner and outer log-normal model envelopes, defaulting to 1σ and 2σ.
  • Horizon badges: terminal price references for the selected bands.
  • TARGET tag: ATR Envelope or Manual Price distance in sigma units; not target-hit probability.
  • Location: STRETCHED-HIGH, MID-RANGE or STRETCHED-LOW as descriptive context.
  • Panel: Target Fit and terminal-close calibration with sample maturity.
Signals, States & Alerts What each visible state represents and when an alert marks a condition that deserves attention.

Signals & States

  • INSIDE INNER WINDOW → target distance in sigma units is at or below the configured inner multiplier; this is a model-distance classification, not a success probability.
  • INSIDE OUTER WINDOW → target distance is outside the inner window but at or below the configured outer multiplier; reachability is not established.
  • BEYOND OUTER WINDOW → target distance exceeds the configured outer multiplier; no target-hit probability is computed.
  • STRETCHED-HIGH / STRETCHED-LOW → current price is above 70% or below 30% of its recent high-low range; no reversion signal is implied.
  • MID-RANGE → current price is within the middle portion of its recent range; no trend-continuation forecast is implied.

These are interpretive states, not trade instructions.

Best Conditions & When to Step Back Where the workflow is most useful, which conditions weaken interpretation and how context changes the reading.

When to Use

  • Planning a target and wanting to know if it fits the symbol's volatility.
  • Sizing expectations on the timeframe you actually trade — intraday to daily is where the cone is most actionable.
  • Reviewing recent-range location separately from the volatility model, without treating it as a reversal or continuation signal.

When Not to Use

  • In illiquid symbols where volatility estimates are unstable.
  • Immediately around scheduled high-impact events, where realized volatility can jump far beyond the recent sample.
  • On very high timeframes (monthly), where the compounded expected move becomes extremely wide and less practical for planning.
Controls, Interface & Practical Workflow The main inputs, visual controls and a repeatable sequence for using the workflow without losing chart clarity.

Key Inputs

  • Volatility method → log-return standard deviation or ATR-derived sigma using sqrt(pi/8).
  • Volatility length → how reactive the estimate is.
  • Forward horizon (N) → how many bars the cone projects.
  • Inner / Outer band (σ ×) → configurable multipliers, defaulting to 1σ and 2σ.
  • Target Mode, ATR Envelope and Manual Target Price → choose a symmetric ATR distance or one positive manual price to review in sigma units.
  • Location lookback → the range used for the stretched / mid read.
  • Visual and panel settings → theme, position, font size, and element toggles.
Boundaries, Limitations & Risk What the workflow does not do, where its outputs can weaken and the risk boundaries every buyer should understand.

What This Workflow Is Not

  • Not a prediction engine — it does not know future direction.
  • Not financial advice.
  • Not an automated trading system.
  • Not a source of guaranteed signals.

Limitations & Transparency

Volatility is estimated from a trailing sample, so the cone reflects recent conditions and will lag sudden regime changes. Different timeframes produce different cone widths, and on very high timeframes the cone can become extremely wide — a correct but less practical reflection of long-horizon volatility. The historical interface is explicitly dated and may use different settings. Terminal calibration compares later horizon closes with frozen starting envelopes in non-overlapping samples; it does not measure whether every intervening candle stayed inside them.

Risk Disclosure

Trading involves substantial risk. This script is an analytical and visualization tool for educational purposes only. It does not provide financial advice or guaranteed results. All trading decisions, and their consequences, remain entirely your own responsibility.

5-Year Access & Delivery The access term, payment-to-activation sequence and the TradingView username required for manual delivery.

5-Year Access & Delivery

  • New-purchase access: At least five years of access — 1,827 days from purchase. One-time payment; no automatic renewal.
  • One TradingView username: submit the exact username during checkout.
  • Manual activation: invite-only access is enabled after payment confirmation.

This is an analytical and educational TradingView workflow. It does not connect to a broker, place trades, manage an account, provide financial advice, or guarantee results. Trading involves risk, and every decision remains the user's responsibility.

View the official TradingView publication

Before you buy

Clear access. Clear purpose. No signal-shop promises.

Expected Move Cone is delivered as a TradingView Pine Script workflow for structured analysis and chart review. Access is activated manually for the TradingView username submitted at checkout.

  • TradingView accessInvite-only access is enabled after payment confirmation.
  • Analysis workflowDesigned for context, structure, risk review and visual discipline.
  • Not auto-tradingNo broker connection, no account management and no guaranteed outcome.

Product FAQ

Is this a TradingView Pine Script workflow?

Yes. This product is an invite-only AGPro Series workflow for use inside TradingView.

Does it trade automatically?

No. AGProLabs workflows are analytical tools. They do not connect to brokers, place trades or guarantee outcomes.

How is access activated?

Access is activated manually for the TradingView username submitted during checkout after payment confirmation.

Does access include TradingView or paid market data?

No. This purchase provides invite-only access to the selected AGProLabs workflow. It does not include a TradingView subscription or paid exchange data. Check your TradingView plan, available data, chart resources and alert capabilities for your intended workflow before ordering; contact support if unsure.

Compare other premium products (40)

Open a product to review its methodology, interface and access details.

Confirmation & Playbook

Defense & Management

Liquidity & Reclaim

Platform Access

Risk & Execution

SMC & Structure

Trading Suite

Volume & Trap
